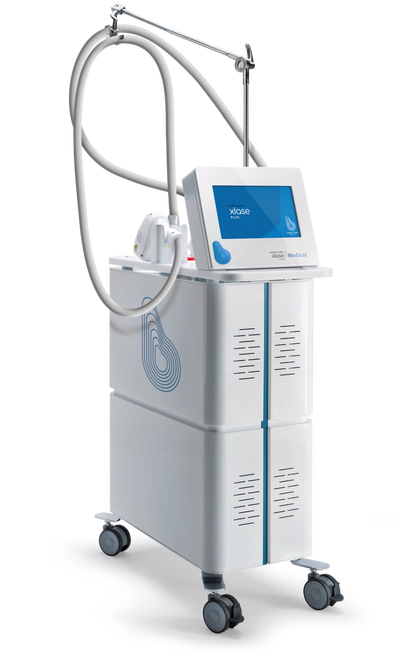

XLASE PLUS

---

The request for hair removal on large body areas is constantly growing, but the technologies currently in use have

shown several limits: excessive time required to achieve permanent hair reduction, lack in safety and difficulty in

treating multiple skin types.

The Xlase Plus diode laser represents the safest and most effective solution to treat unwanted hair: equipped with

the state-of-the-art optical technology, the diode module can reach up to 4000W of power and is considered the

best choice for permanent hair removal.

Available in a single wavelength at 810nm, or double at 808 and 760nm (AlexPro laser module) which combines all the

characteristics of alexandrite laser with the advantages of diode technology, Xlase Plus can treat all types of skin and

most hair color, being able to perform fast hair removal treatments with maximum comfort in even the darkest skin.

The interchangeable PLUG-IN sapphire optics measure 81mm and 150mm and guarantee fast procedures while protecting the surface of the skin through contact cooling.

Motion speed procedure combines simultaneous cooling with fast laser pulses increasing speed

and comfort.

Long pulse procedure rises the target’s therapeutic temperature during each pulse to treat even very deep follicles.

DISTINTICTIVE TECHNOLOGIES

Encapsulated stacks diode in fully closed chamber ensures high efficiency laser source and prolongs laser module life.

Clamped laser bars technology guarantees high efficiency and long lifetime, up to 20 million pulses.

AlexPro, the double wavelength 760/808nm diode, allows the operator to dose the emission

of a single wavelength or both simultaneously, ensuring even more effective hair removal.

MOTION SPEED

Efficacy: less chromophore-dependent, allows delivery of laser energy more efficiently.

Safety: lower fluence is required since the target is reached by the gradual building up of energy.

Painless: The unique Motion Speed technology at low pulse duration inhibits the transmission of pain sensation.

Short treatment time: with a spot size of 9x9mm, at 10 pulses per second, large areas can be treated rapidly.

LONG PULSE

Diode technology by Xlase Plus uses high-power technology that can be operated with user-select pulse duration, delivering high fluence.

INDICATIONS FOR USE:

Diode 808/760nm 4000W ALEX PRO

Indicated for the treatment of hair removal with static and dynamic modes intended for permanent reduction in hair regrowth, defined as a long term, stable reduction in the number of hairs re- growing when measured at 6, 9, and 12 months after the completion of a treatment regime.

• Treatment of Pseudofolliculitis barbae (PFB);

• Use on all skin types (Fitzpatrick I - VI).

Diode 2800W 810nm

Indicated for use on all skin types (Fitzpatrick skin types I - VI), including tanned skin. Indicated for:

• the treatment of benign vascular and benign pigmented lesions;

• permanent reduction in hair regrowth, defined as a long term, stable reduction in

the number of hairs re-growing when measured at 6, 9, and 12 months after

the completion of a treatment regime.

Diode 1200W 810nm

Indicated for use on all skin types (Fitzpatrick skin types I – VI), including tanned skin.

Indicated for the treatment of benign vascular lesions, including angiomas,

hemangiomas, telangiectasia and other benign vascular lesions, and the treatment

for pseudo folliculitis barbae.

Indicated for permanent reduction in hair regrowth, defined as a long term, stable

reduction in the number of hairs re-growing when measured at 6, 9, and 12 months after the completion of a treatment regime.

Indicated for the treatment of benign pigmented lesions and leg veins.

The SLP Nd:YAG applicator emits light with a wavelength of 1064nm; the light penetration into tissue reaches its maximum depth while its low absorption guarantees preservation of the surrounding tissues on all skin types. It combines a long and short pulse in a compact and technologically advanced applicator that offers a broad range of popular treatments for leg veins, vascular lesions, hair removal and telangiectasia.

SLP Nd:YAG zoom applicator allows a wide variety of treatments from hair removal, fine vascular non-ablative treatments. The selected treatment source is delivered from the handpiece into the skin, where it releases only the wavelengths absorbed by the target. The pulse intensity and duration are tightly controlled to ensure a selective target heating, while leaving the surrounding tissue unaffected.

The ideal focal distance is different with each lens (2.5mm, 4mm, 6mm, 10mm). The wide choice

of focus lenses allows to adjust the laser beam to a precise spot that enables accurate results.

In order to achieve high quality and precise vascular cauterization, the laser beam is directed to a focus lens that takes a designed shape of 2.5mm.

The proprietary technology of the “Easy-Plug” laser connector allows to easily switch from one handpiece to another and combines water-data and signal-power communications.

DISTINTICTIVE TECHNOLOGIES

The highly compact resonator ensures that the beam remains stable and is not scattered with multiple reflections, contributing to minimum beam waste. The pre-aligned beam exhibits a homogeneous top hat profile integrated in a temperature regulated housing for optimum performance.

ADVANTAGES

The SLP Nd:YAG laser is homogeneously absorbed in melanin and blood, the two chromophores targeted in surgical and aesthetic laser treatments. This makes it an ideal laser source for those who seek versatility for their practice in non-ablative aesthetics. For decades, the deeply  penetrating 1064nm Nd:YAG wavelength has been accepted as safe, effective and suitable for all skin types.

EFFECTIVE IN AESTHETICS

With its exceptional pulse control and unique double frequency technology, it is the gold standard for non-surgical aesthetic laser procedures such as telangiectasia, leg veins, spider veins, vascular treatments and unwanted hair reduction.

INDICATIONS FOR USE:

SLP ND:YAG 1064nm

Indicated for permanent reduction in hair regrowth, defined as a long term, stable reduction in the number of hairs re-growing when measured at 6, 9, and 12 months after the completion of a treatment regime. (Skin Types Fitzpatrick I-VI), photocoagulation and hemostasis of benign pigmented and benign vascular lesions, treatment of benign pigmented lesions, such as but not limited to warts, telangiectasia, leg veins and spider veins.

The QS Nd:YAG applicator is the ideal choice for the treatment of pigmented lesions and for the removal of unwanted dark tattoos. It is also used for benign pigmented lesions.

It combines high peak power and short pulse duration, thanks to the innovative

Q-Switched crystal with unique resonator technology that creates stable high energy laser output.

High-precision refractive optical elements enable uniform energy distribution, cause less energy

scattering and prevent central heat build-up. In order to achieve high quality and precise vascular cauterization, the laser beam is directed to a focus lens that takes a designed shape

of 2.5mm.

DISTINTICTIVE TECHNOLOGIES

Q Switch Nd:YAG 1064nm

various frequencies are ideal for treating dark tattoos and benign pigmented lesions.

Short pulse duration with high peak energy are directed onto the tattoo, creating a photo-acoustic effect within the pigment.

ADVANTAGES

The QS Nd:YAG laser is the treatment of choice for tattoo removal as it can remove tattoo completely without leaving any scarring. The absorption of high-power, nanosecond laser pulses in the skin breaks up the tattoo pigments into smaller particles which are more easily absorbed by the body’s immune system. The deep penetration of the laser beam into the skin ensures that even the deepest pigments in professional tattoos are reached, while its low absorption in surrounding skin structures significantly reduces the risk of unwanted side effects, such as hypopigmentation.

INDICATIONS FOR USE:

Q Switch ND:YAG 1064nm

Indicated for removal of dark tattoos and treatment of benign pigmented lesions.

The Er:YAG fractional applicator works by removing microscopic layers of skin, producing outstanding results.

The Er:YAG fractional procedure produces thousands of deep, tiny columns in the skin. It works on old epidermal cells without affecting the surrounding tissue, thus reducing healing time and promoting the skin’s natural regenerating process. It is a safe, non-invasive procedure that results in a fresh, healthy and young skin.

The fractional lens has low absorption offering the longest lifetime, excellent durability, and

maximum focus stability.

The fractional procedure creates a thermal channel in the pixel area, without affecting the

surrounding tissue.

Er:Yag Terminal Spacer, induces excision of the epidermis with minimal thermal effects

resurfacing the supercial skin layers.

DISTINTICTIVE TECHNOLOGIES

Short pulse duration in laser fractional treatments allows heat to diffuse into the tissue.

ADVANTAGES

The Er:YAG fractional laser is widely recognized as the golden standard for skin resurfacing.

It has the highest skin absorption coefficient among all infrared lasers, allowing extremely precise, layer by layer micro-ablation of the epidermis.

SHORT PULSE

With a short pulse width, Er:YAG fractional laser induces minimal thermal effects to underlying tissue, offering effective skin rejuvenation treatments with higher comfort levels and shorter recovery times.

LONG PULSE

With long pulse duration, more heat is absorbed by the skin increasing thermal effect.

These thermal effects produce collagen contraction and new collagen stimulation in the dermis.

INDICATIONS FOR USE:

ERBIUM:YAG FRACTIONAL 2940nm

Indicated for procedure requiring resurfacing of soft tissue with fractionated handpiece

Superior by design, the Xlase Plus Calibrated Pulsed Light (CPL) applicator offers several innovative and advanced technology enhancements. Compared to the other IPL systems available on the market, the CPL system has proven to be among the most powerful and effective. It is simple and efficient to operate.

The CPL applicator provides a range of different available wavelengths. Through the selection of sapphire crystal filters, the operator can choose the ideal wavelengths to effectively treat a wide number of skins conditions. These special cut-off filters are used to block out wavelengths of light below the filter number selected and allow only those wavelengths of light above the filter number to pass through.

50X10mm treatment window ensures to avoid skipping any area and full coverage rate.

Integrated contact cooling technology effectively cools the skin, allowing to use higher fluence.

DISTINTICTIVE TECHNOLOGIES

Sapphire filters provide superior light wavelength selectivity, effectively treating a variety of skin conditions. The most effective solution for treating skin discoloration and rejuvenation through rapid pulse configurations.

ADVANTAGES

Based on Xenon flash lamp emission with cooling system and high performance pulse technology, the CPL applicator uses a broad spectrum of light while lasers emit a single wavelength. The CPL applicator produces a flat spectrum of light from 500nm to 1200nm.

SUPERIOR SELECTIVITY

Different filters are used to filter out lower and higher

wavelengths to effectively treat a broad spectrum of benign vascular and benign pigmented lesions.

HIGH PERFORMANCE PULSE EMISSION

High performance pulses avoid the slow rise, and even longer drop-off in pulse power associated with standard light technologies, and ensure ultimate performance and patient comfort during all treatments. This uniform pulse creates a much more efficient heating

process, so lower fluences can be used to achieve the same clinical result.

INDICATIONS FOR USE:

CPL (Calibrated Pulsed Light)

Indicated for use Fitzpatrick skin types I - IV.

Indicated for permanent reduction in hair regrowth, defined as a long term, stable

reduction in the number of hairs re-growing when measured at 6, 9, and 12 months after the completion of a treatment regime. Photocoagulation of benign vascular lesions, photo thermolysis of blood vessels, treatment of benign pigmented lesions.
